Deck Beam Span Calculator

Maximum tabulated beam span from IRC 2021 Table R507.5(1) — a starting point, not a final design

Look up the maximum allowable deck beam span between posts for Southern Pine, Douglas Fir-Larch / Hem-Fir / SPF, or Redwood / Western Cedars / Ponderosa / Red Pine. Pick 1-ply, 2-ply, or 3-ply of 2x6 through 2x12, then the effective deck joist span the beam carries (6 through 18 ft). Values are IRC 2021 Table R507.5(1) at 40 psf live / 10 psf dead, L/360, No. 2, wet service. This is a starting point based on that standard table, not a substitute for local code, the lumber grade stamp, or a licensed engineer.

How effective joist span and plies work: beam span guide. Midspan bounce: troubleshooting. Why this is not a joist number: beam vs joist span. Full grid: IRC deck beam span tables.

Joists first: Joist Span Calculator. Same deck, stairs: Deck Stair Calculator. Interior stairs: Stair Stringer Calculator. Roof commons: Rafter Length & Roof Pitch Calculator. Lumber volume: Board Foot Calculator.

Starting point only — not a substitute for code, the grade stamp, or an engineer. These spans come from the standard IRC 2021 prescriptive table for deck beams: Table R507.5(1) at 40 psf live / 10 psf dead, L/360, No. 2, wet service factor included. Local adopted code, amendments, snow load (Tables R507.5(2) through R507.5(4) are not in this tool), actual species/grade on the stamp, ply nailing, bearing, and anything outside those rows still control. For higher snow loads, longer spans, or non-prescriptive framing, use a licensed engineer.

Embed this calculator Free · no API key · keep the attribution link

Copy the snippet below to embed this calculator on your site. The attribution link must stay intact and dofollow (no rel="nofollow"). Browse all embeddable calculators

Theme Width

<div class="ttq-embed" style="max-width:100%;margin:0 auto;">
  <iframe src="https://testtalkhq.com/embed/deck-beam-span-calculator/?theme=light&utm_source=embed" width="100%" height="980" frameborder="0" loading="lazy" scrolling="no" title="Deck Beam Span Calculator — TestTalkHQ" style="border:0;max-width:100%;width:100%;"></iframe>
  <p style="font:400 13px/1.4 system-ui,sans-serif;text-align:center;margin:6px 0 0;">Powered by the <a href="https://testtalkhq.com/deck-beam-span-calculator/?utm_source=embed&utm_medium=referral&utm_campaign=calculator_embed&utm_content=deck-beam-span-calculator" target="_blank" rel="noopener">Online Deck Beam Span</a> from <a href="https://testtalkhq.com/?utm_source=embed&utm_medium=referral&utm_campaign=calculator_embed&utm_content=deck-beam-span-calculator" target="_blank" rel="noopener">TestTalkHQ</a></p>
</div>

<div class="ttq-embed" style="max-width:100%;margin:0 auto;">
  <iframe src="https://testtalkhq.com/embed/deck-beam-span-calculator/?theme=light&utm_source=embed" width="100%" height="980" frameborder="0" loading="lazy" scrolling="no" title="Deck Beam Span Calculator — TestTalkHQ" style="border:0;max-width:100%;width:100%;"></iframe>
  <p style="font:400 13px/1.4 system-ui,sans-serif;text-align:center;margin:6px 0 0;">Powered by the <a href="https://testtalkhq.com/deck-beam-span-calculator/?utm_source=embed&utm_medium=referral&utm_campaign=calculator_embed&utm_content=deck-beam-span-calculator" target="_blank" rel="noopener">Online Deck Beam Span</a> from <a href="https://testtalkhq.com/?utm_source=embed&utm_medium=referral&utm_campaign=calculator_embed&utm_content=deck-beam-span-calculator" target="_blank" rel="noopener">TestTalkHQ</a></p>
</div>
<script>(function(){function r(e){if(!e||!e.data||e.data.type!=="ttq-embed-height")return;var h=+e.data.height;if(!h)return;document.querySelectorAll("iframe[src*='testtalkhq.com/embed/']").forEach(function(f){if(!e.source||f.contentWindow===e.source)f.style.height=h+"px"})}window.addEventListener("message",r)})();</script>

How to Use This Deck Beam Span Calculator

Size the joists first. Then tell this tool which species group you are buying, how many 2x plies you will nail up, the size of each ply, and the effective deck joist span that beam has to carry. The result is the maximum tabulated post-to-post beam span from IRC 2021 Table R507.5(1). Read the yellow flag on the result: it is a starting point. Confirm the stamp, the adopted code, and whether your loads actually match 40 psf live / 10 psf dead.

Beam span = IRC 2021 Table R507.5(1) · Joist span = IRC 2021 Table R507.6 · Grade assumed: No. 2

Effective joist span and what “plies” means: beam span guide. Midspan bounce and adding a post: troubleshooting. Why you cannot swap this number for a joist span: beam span vs joist span. Bookmarkable grid: IRC deck beam span tables. The same cell as on-center post spacing: deck post spacing calculator.

Joists that this beam supports: Joist Span Calculator. Deck stairs off the same frame: Deck Stair Calculator. Interior stringers: Stair Stringer Calculator. Commons: Rafter Length & Roof Pitch Calculator. Buying the bunk: Board Foot Calculator.

What This Number Is (and Is Not)

A beam span table is a lookup, not a calculation. Table R507.5(1) publishes maximum post-to-post spans for built-up 2x beams under a stated live load, dead load, and deflection limit, keyed to how much joist span the beam carries. This tool returns that published cell. It does not check post size, footings, connectors, cantilever of the beam, or snow-country rows.

Assumptions baked into every result

40 psf live load, 10 psf dead load, L/360 at main span, No. 2 grade, wet service, Table R507.5(1). Snow is not assumed concurrent. 50 / 60 / 70 psf ground-snow tables exist as R507.5(2) through R507.5(4) and are not in this dropdown. Select Structural, #1, and #3 are not in this dropdown.

The stamp wins. If the bunk is Hem-Fir #2 and you ran Southern Pine, you looked up the wrong house. How to read the stamp and the effective-span column: beam span guide.

When this tool is the wrong tool

Snow country, a hot tub, a roof over the deck, beams past the table, LVL or steel, and anything the inspector will not accept as prescriptive. Those jobs need listed product data or a licensed engineer. Treat every number here as a conversation starter with the code book, not a green light to skip a post.

Inherited a bouncy deck at midspan?Table numbers first. Then what adding a post actually changes versus upsizing the beam.

Troubleshooting →

Any trade

Contractor Job Estimator

$29.00

Buy

See all products

Checkout opens here — you stay on this page.

Framing Layout Gear

Span tables tell you how far a beam may run between posts. The square, tape, and level still have to match the stamp and the bay you are actually framing.

16×24 Framing Square

Layout post bays after the table says the beam reaches. Same square you will use on the deck stairs off that frame.

View on Amazon →

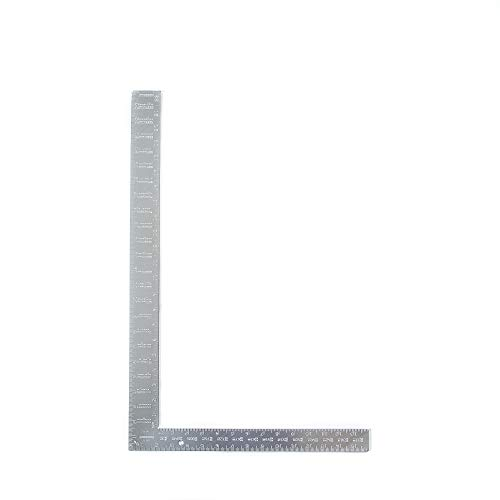

Swanson Speed Square

Fast 90s when you are checking ply alignment and post plumb. Not a substitute for reading the grade stamp.

View on Amazon →

48" Box Beam Level

Existing sag at midspan shows up here before you argue with a span table. Sight the beam, then compare to the tabulated number.

View on Amazon →

7-1/4" Circular Saw

Cut the beam to the span you actually have, not to a wish. If the table does not reach, add a post, upsize, or call an engineer — do not sneak an extra foot.

View on Amazon →

Johnson Stair Gauges

When the same deck gets stairs, lock rise and run on the square. Beam span and stringer layout are different jobs.

View on Amazon →

How Beam Tables Work

Effective joist span, plies, and why a 2x10 joist number is not a 2x10 beam number.

Read the Beam Span Guide →
