BuyBolt Torque Spec vs Torque-to-Yield
A real shop fork: when a torque chart or calculator is enough — and when only a torque-plus-angle (TTY) procedure is valid
Standard torque specs and torque-to-yield (torque-angle) methods both produce clamp load, but they are not interchangeable. Use this page when you must choose which method a fastener actually requires. Pair with the Bolt Torque Calculator for elastic-range lookups and the Bolt Torque Guide for friction and sequence basics.
The Decision Fork in One Minute
Ask one question: Does the governing procedure end at a torque value, or does it require an angle-of-turn after an initial torque?
Use a torque spec / chart
- Procedure is “torque to X ft-lb / Nm” (often in stages)
- Fastener stays in the elastic range
- Generic grade charts can inform non-OEM fab work
- Reuse is often allowed if the bolt is undamaged
Use torque-to-yield / angle
- Procedure is “torque to X, then turn Y°”
- Bolt is intentionally stretched into plastic yield
- Charts alone cannot replace the angle step
- Reuse is almost always prohibited
Rule: If the manual shows degrees after a snug or initial torque, do not substitute a higher click-torque from a Grade 8 / Class 10.9 chart. That is how head gaskets and rod bearings get destroyed.
What Each Method Is Actually Controlling
Standard torque (elastic): You apply a known moment and assume friction (thread + under-head) so that a fraction of that moment becomes preload. Charts and the calculator estimate that preload for a grade and size under a stated dry or lubricated condition. Accuracy lives or dies on friction matching the assumption.
Torque-to-yield (plastic + angle): An initial torque seats the joint and takes up slack. The angle step then stretches the bolt a controlled amount into (or near) yield so clamp load is more consistent bolt-to-bolt on critical gaskets — even when friction varies. The angle is the preload control; the initial torque is mostly preparation.
That is why a TTY head-bolt procedure and a generic M10 Class 10.9 dry chart are answering different questions. One is application-engineered stretch; the other is a friction-based estimate for elastic fasteners.
Any trade
Checkout opens in a new tab.
Tools for Torque Spec and Angle Work
Five fastener picks from the TestTalkHQ affiliate catalog — calibrated wrenches, sockets, and anti-seize for elastic joints
Top Pick
CDI 2503MFRPH 1/2-Inch Drive Torque Wrench 30-250 ft-lb
- Calibrated click wrench for structural / engine ranges
- Dual-direction ratchet for nut or head torquing
- Store backed off to the lowest setting

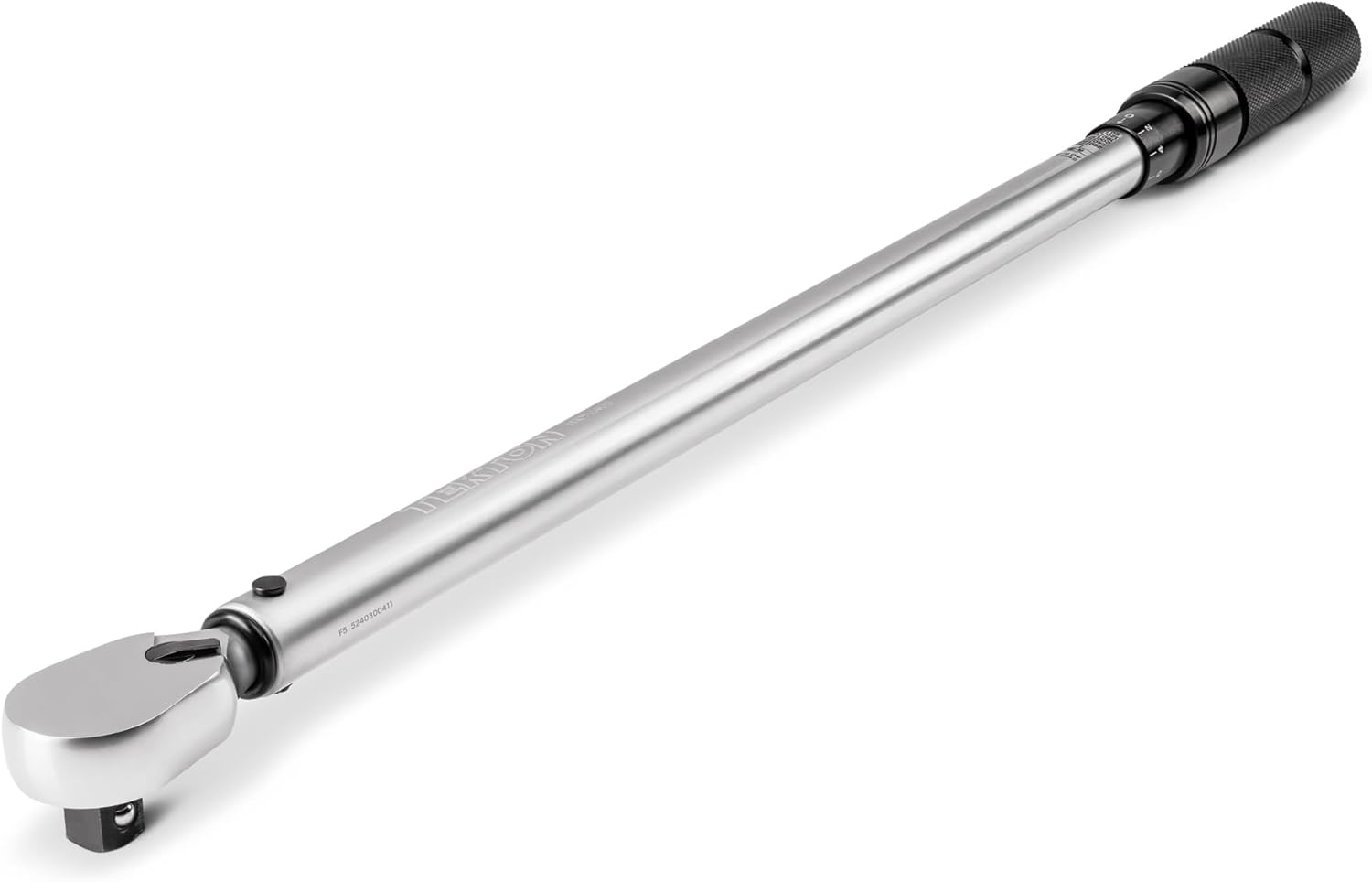

TEKTON 1/2-Inch Drive 90-Tooth Torque Wrench 40-300 ft-lb
- High tooth count for cramped flanges and covers
- Covers heavy fastener work in one wrench
- Dual-scale handle for ft-lb checks

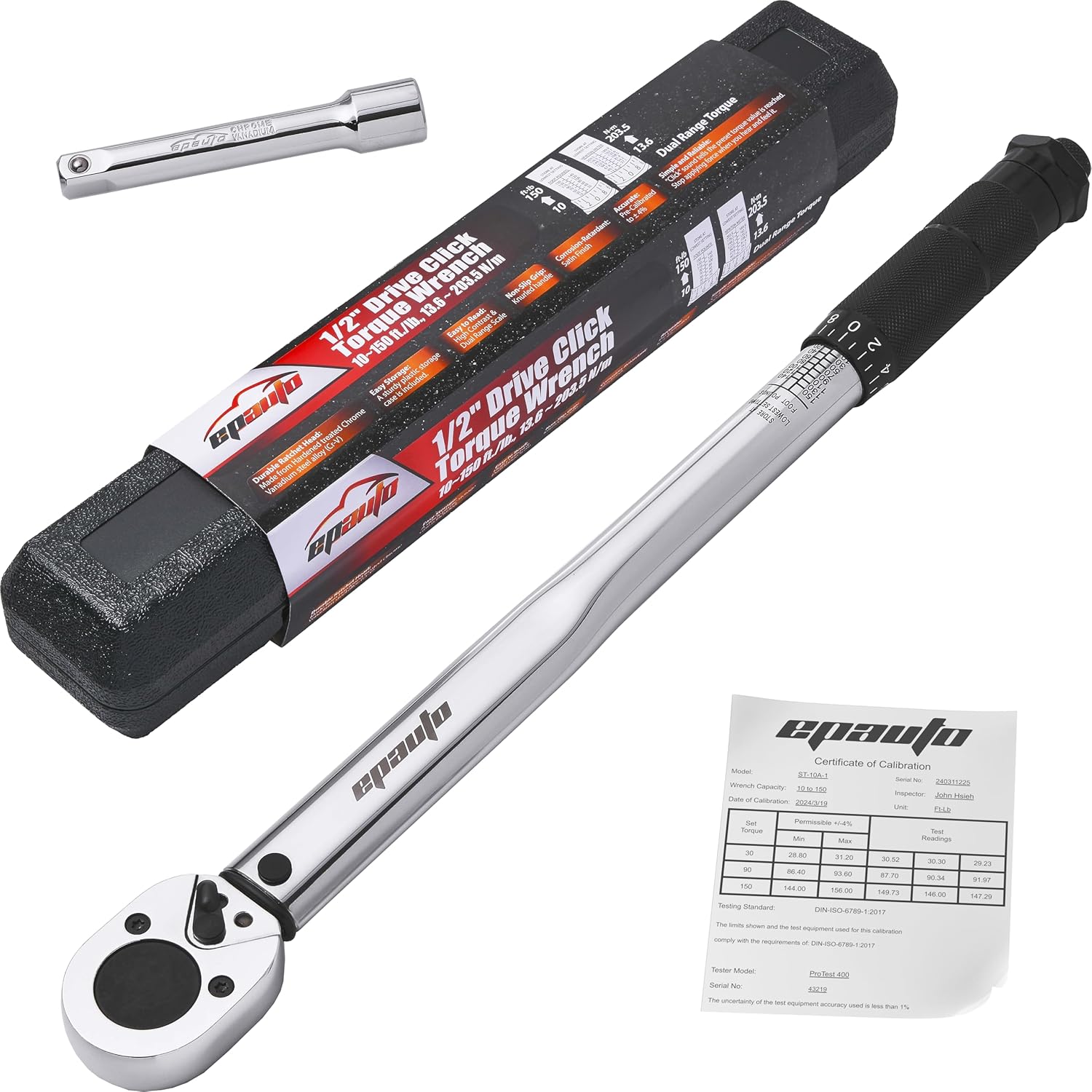

EPAuto 1/2-Inch Drive Click Torque Wrench 10-150 ft-lb
- Lower mid-range for lighter fasteners
- Useful when a 250 ft-lb wrench is too coarse
- Keep a second wrench for mid-scale accuracy
DEWALT Impact Socket Set Metric/SAE 1/2in Drive
- Correct socket size reduces rounding and false torque
- Metric and SAE coverage for mixed hardware
- Pair with a click wrench for final pass
Permatex Anti-Seize Lubricant
- Cuts stainless-on-stainless galling risk
- Reduce dry torque 20–30% when coated
- Coat threads evenly — not the gasket face
As an Amazon Associate, TestTalkHQ earns from qualifying purchases. Always follow OEM torque and lubrication guidance.
How to Tell Which Method Your Fastener Requires
- Read the service procedure, not the bolt diameter. Same size fasteners appear in both elastic and TTY joints.
- Angle language is the tell: “plus 90°,” “+180°,” “angle torque,” or a degree-wheel step after an initial torque almost always means TTY (or stretch-controlled) procedure.
- Replace language: “Always replace bolts” on head, rod, or some suspension fasteners usually tracks with TTY.
- No OEM doc? For shop fab and structural hardware with grade markings, elastic torque charts are the normal path — document dry vs lubed and sequence. Do not invent an angle procedure without engineering data.
| Signal | Lean toward | Why |
|---|---|---|
| Single final torque (maybe staged %) | Torque spec / chart | Elastic preload estimate |
| Initial torque + degrees | TTY / angle method | Stretch-controlled clamp |
| OEM says “do not reuse” | TTY (usually) | Plastic stretch already used |
| Only a generic grade chart available | Torque spec path | No angle data to follow |
| Conflicting chart vs OEM angle procedure | OEM angle procedure | Application owns the joint |
When Torque Charts and Calculators Are the Wrong Tool
The specifications chart and calculator are excellent for elastic fasteners when you control grade, size, and lubrication. They fail as TTY substitutes because:
- They target a friction-based torque, not a plastic stretch distance.
- They assume reusable elastic behavior; TTY bolts have already used up ductility.
- They ignore gasket-specific clamp windows the OEM validated with angle.
If you are mid-procedure and the wrench clicks at the “chart equivalent” before the angle step is done, you are not finished — and you may already have the wrong fastener if you reused a TTY bolt.
Reuse Rules Differ by Method
Elastic torque fasteners: Often reusable if threads are clean, shank is not necked, and friction coatings are still representative. Inspect; when in doubt on critical joints, replace.
TTY fasteners: Treat as single-use unless the manufacturer explicitly allows a measured reuse program (rare in automotive). Cost of new bolts is trivial next to a failed head gasket or rod.
Symptoms of using the wrong method — snapped bolts, loose joints after “correct” torque — are covered in Bolt Torque Troubleshooting.
Recommended Workflow
- Find the governing document (OEM manual, drawing, or project spec).
- If it is torque-only → look up grade/size in the calculator or chart, match dry/lubed, use a calibrated wrench in the right range, follow sequence.
- If it is torque + angle → replace TTY bolts as required, apply specified lube, torque to the initial value in sequence, then complete the angle with a degree gauge — do not “convert” the angle into extra ft-lb from a chart.
- If sources conflict → OEM/drawing wins. See troubleshooting for diagnostic symptoms.
Frequently Asked Questions
Can I replace a torque-plus-angle procedure with a higher chart torque?
No. Angle controls stretch; a higher click value does not reliably reproduce the same preload and can yield or break the bolt unpredictably.
Are all angle-torque fasteners TTY?
Most automotive angle procedures after a low initial torque are TTY or stretch-controlled. Always follow the named procedure and replace rules for that part.
Can I use the bolt torque calculator on head bolts?
Only if the OEM procedure is a torque-only elastic spec. If the manual shows degrees, the calculator is for related non-TTY fasteners — not a substitute for the angle step.
Dry vs lubricated — does it matter for TTY?
Yes. TTY procedures specify a lubricant condition for the initial torque and friction during stretch. Do not freestyle anti-seize onto a TTY joint unless the OEM allows it.
Where do I go if the bolt already failed?
Bolt Torque Troubleshooting — snaps, loose joints, wrench mismatch, galling, and chart conflicts.
